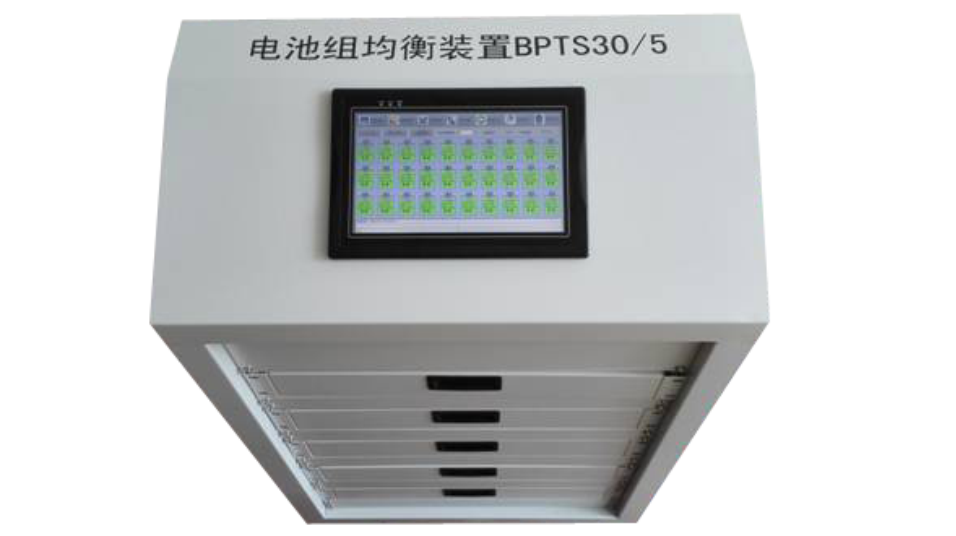

BPTS-30/5

Feature Description:
contains all the functions of BMS module, comes with 30 independent equalization module, 10-inch TFT touch screen system, quad-core CPU processor;
There are 30 channels that can be used to quickly balance and control 30 series tandem cells at the same time.
Equalization current 5A or 10A optional, the acquisition accuracy of up to 0.1%, the use of voltage and capacity of the combination of the strategy to balance;
The data between the device and the high-capacity battery pack health status monitoring and evaluation system can be interoperable and updated in real time;
support both manual and automatic equalization;
Intelligent thermal management, the balance of the process of abnormal temperature automatically suspend balance and interface prompt, the temperature threshold can be set;
data analysis function: can generate battery voltage curve, current curve, single voltage column, characteristic comparison chart, single battery capacity curve,Capacity analysis tables, etc., and EXCEL form to export.

Technical parameters	rating	Notes
Maximum battery detection section	30	...
Single voltage acquisition range	1 ~ 5V	...
Single voltage acquisition accuracy	≤ 2mV	...
Group terminal voltage acquisition range	1 ~ 200V	...
Group terminal voltage acquisition accuracy	≤ 100mV	...
Maximum battery equalization	30	...
single cell equalizing current	5A or 10A	...
Equalization after equalization	≤ 1%	...
Equalized capacity difference	≤2Ah	...
data storage interface	USB	...
storage space	Satisfy all channels for 24 hours of data storage at the same time	...
local mode of operation	touch screen	...
Operating voltage	AC220V ± 15%	...
Operating temperature	-10 ~ 55 ℃	...
Operating humidity	40% to 90%	...
size / quality	650 × 350 × 1050 (mm) / 40Kg	...
