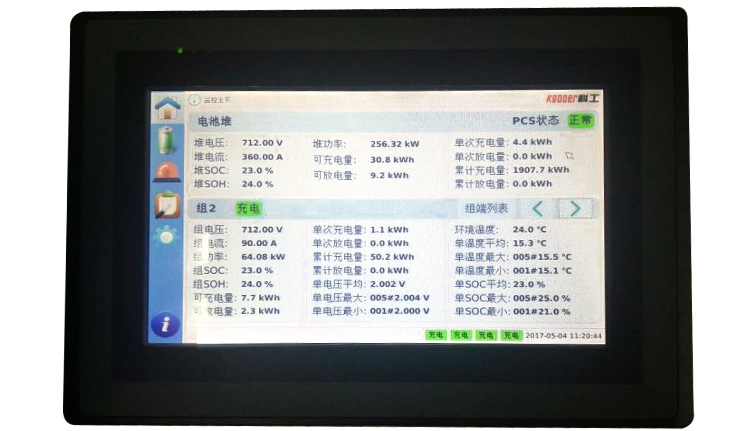

BAMS

According to data:
Display battery pack voltage, current, SOC and other data；
Display cell voltage, temperature, SOC and other data；
Display data of battery pack status。
Call the police to protect:
Battery pack and monomer battery overvoltage, undervoltage alarm and protection；
Battery current overflows alarm and protection；
Temperature overtemperature, under-temperature alarm and protection；
Lower limit alarm and protection on SOC/SOH。
Parameter Settings:
The lower and lower limits of the battery pack and the single battery；
The lower and lower limits of the battery current；
Temperature limit setting; SOC/SOH upper and lower limit Settings；
Set up the running parameters of the battery pack。

Technical parameters	rating	Notes
module supply voltage	DC24V ± 15%	...
Maximum power supply	10W	...
Input Insulation Resistance	≥10MΩ, 1000VDC	...
data communication interface	RS485 * 2, CAN * 1, Ethernet RJ45 * 1	...
communication baud rate	9600bps, 250Kbps (default), 100M	...
dry contact output	2A @ 250VAC / 30VDC	4
switch input	Passive, 12VDC	4
size and weight	193 × 129 × 35 (mm) /1.5Kg	...
installation method	embedded installation	...
hole size	190 × 125 (mm)	...
display size	7 inch TFT	...
operation mode	touch screen	...
storage method	SD card, USB	...
