Distribution network operating system

  Provide the remote monitoring service for micro network (including storage and family small micro network), and meet the requirements of monitoring, managing and scheduling of micro-net assets and operation status. Remote monitoring service main realization on network power information, batteries, cumulative power generation, electricity information, load information, system and off-grid state, and network system fault information, micro battery systems of all kinds of alarm and the protection of information collection, analysis and application.

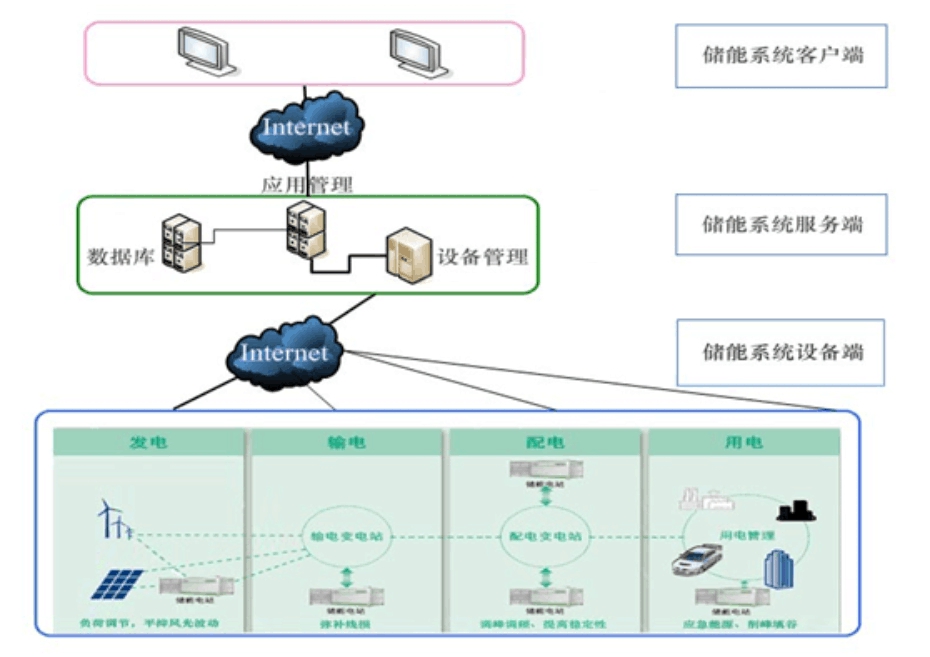

The system block diagram:

System function

The whole system is divided into three layers:

Energy storage system server:Contains three blocks of equipment management services, application management services, and database management services；

Energy storage system client：Contains the grid inverter (PCS) and charging management subsystem, storage battery management subsystem, all kinds of data query subsystem, battery maintenance management subsystem, each subsystem, user management, rights management, etc; The client adopts B/S mode

Energy storage system device terminal：It is divided into four parts, such as photovoltaic power generation and energy storage part, transmission part, distribution part and power supply. Energy storage power plants can be used in the various stages of hair, transmission, distribution and use. The most widely used in the market are the cutting peak filling, the fluctuation of the landscape, and the management of off-grid application.
